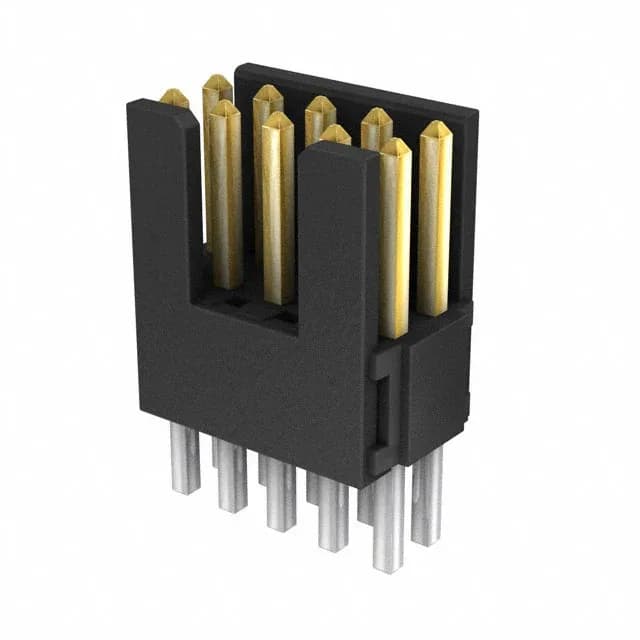

Samtec Inc. FTSH-105-01-F-D-K
MPNFTSH-105-01-F-D-K
Active
CONN HEADER VERT 10POS 1.27MM
$2.8500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFTSH
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FTSH |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Current rating | 3.4A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.099\" (2.51mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Shroud |
| Shrouding | Shrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 10 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.090\" (2.29mm) |
| Overall contact length | 0.309\" (7.86mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
