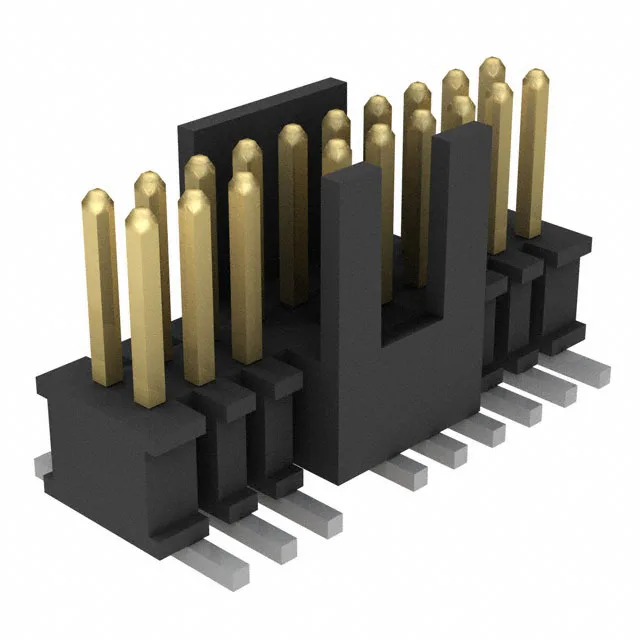

Samtec Inc. FTSH-110-01-F-DV-007-K
MPNFTSH-110-01-F-DV-007-K
Active
CONN HEADER SMD 20POS 1.27MM
$3.5600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFTSH
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FTSH |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Current rating | 3.4A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.099\" (2.51mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Shroud |
| Shrouding | Shrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
