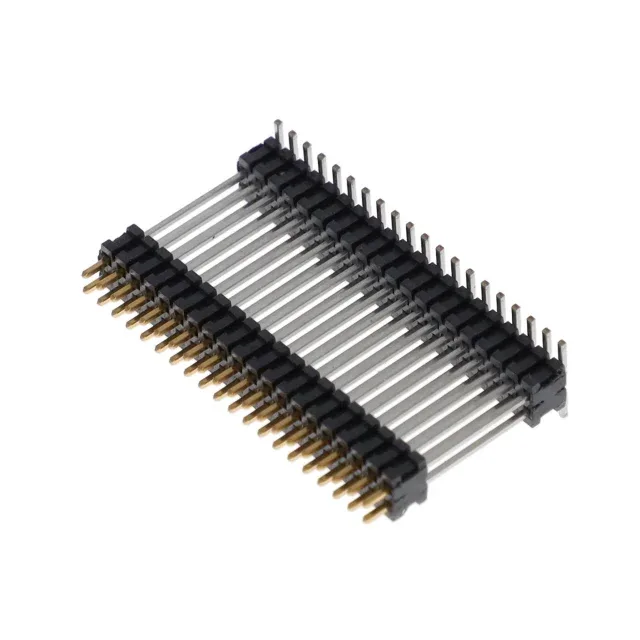

Samtec Inc. FW-20-05-L-D-525-075
MPNFW-20-05-L-D-525-075
Active
CONN HDR 40POS 0.05 STACK SMD
$6.96Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, FW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, FW |
| Mounting | Surface Mount |
| Color | Black |
| Length - stack height | 0.525\" (13.335mm) |
| Pitch | 0.050\" (1.27mm) |
| Package | Tube |
| Row spacing | 0.050\" (1.27mm) |
| Termination | Solder |
| Rows | 2 |
| Positions | 40 |
| Length - overall pin | 0.600\" (15.240mm) |
| Length - post (Mating) | 0.075\" (1.905mm) |
| Contact finish - post (Mating) | Gold |
| Contact finish thickness - post (Mating) | 10.0µin (0.25µm) |
