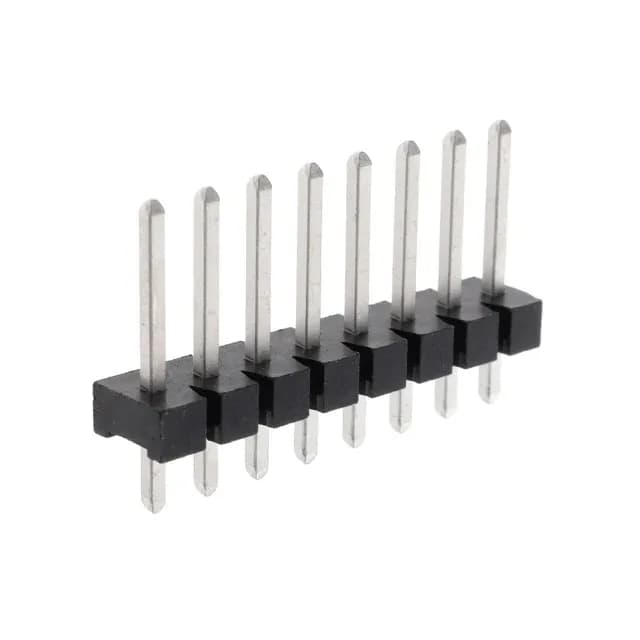

Samtec Inc. FWJ-08-01-T-S
MPNFWJ-08-01-T-S
Active
CONN HEADER VERT 8POS 3.96MM
$2.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFWJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FWJ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 600VAC, 845VDC |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.125\" (3.18mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Overall contact length | 0.750\" (19.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
