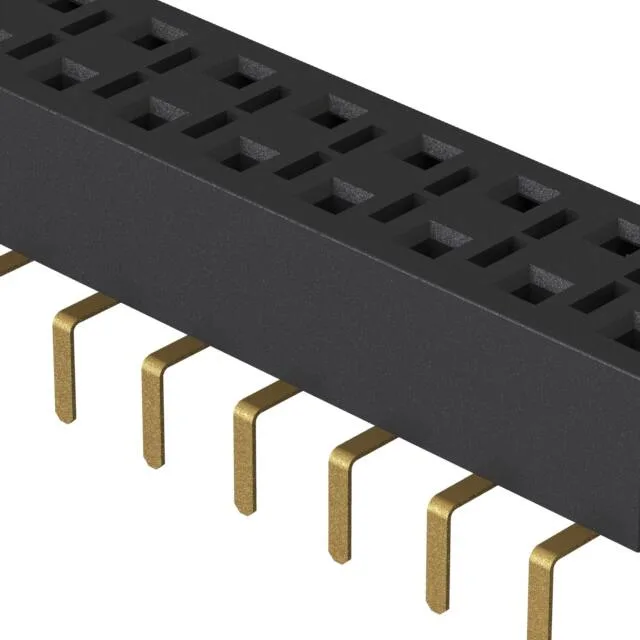

Samtec Inc. HLE-110-02-G-DV-PE-BE
MPNHLE-110-02-G-DV-PE-BE
Active
CONN RCPT 20POS 0.1 GOLD PCB
$5.71Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHLE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HLE |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom Entry, Pass Through |
| Fastening type | Push-Pull |
| Voltage rating | 400VAC |
| Current rating | 4.1A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.138\" (3.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.090\" (2.29mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
