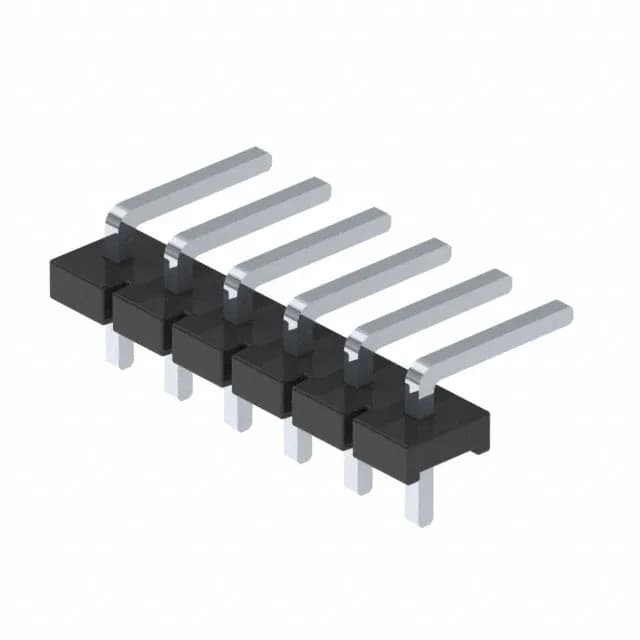

Samtec Inc. HPM-06-02-T-S-RA
MPNHPM-06-02-T-S-RA
Active
CONN HEADER R/A 6POS 5.08MM
$2.7800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHPM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HPM |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 850VAC, 1200VDC |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
