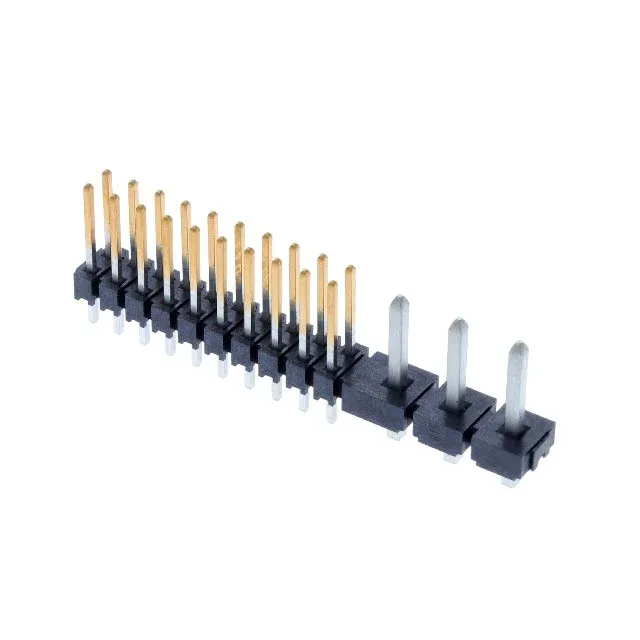

Samtec Inc. HPMC-110-03-L-D-03
MPNHPMC-110-03-L-D-03
Active
CONN HDR .1" SIGNAL/PWR COMBO
$10.5Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHPMC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HPMC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 850VAC, 1200VDC |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper, Phosphor Bronze |
| Insulation color | Black |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Positions | 23 (20 + 3 Power) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Overall contact length | 0.520\" (13.21mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
