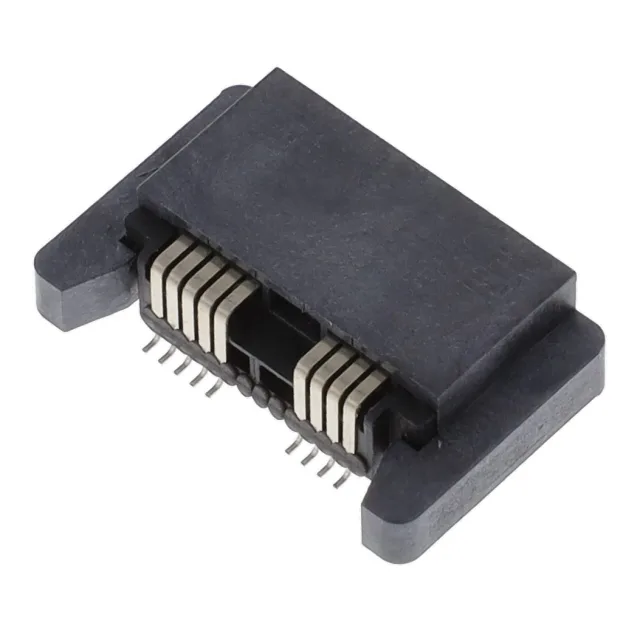

Samtec Inc. HSEC8-109-01-L-RA
MPNHSEC8-109-01-L-RA
Active
CONN EDGE DUAL FMALE 18POS 0.031
$8.99Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEdge Rate™ HSEC8
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Edge Rate™ HSEC8 |
| Card type | Non Specified - Dual Edge |
| Type | Cantilever |
| Mounting | Surface Mount, Right Angle |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Beryllium Copper |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.031\" (0.80mm) |
| Gender | Female |
| Package | Tray |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 18 |
| Contact finish thickness | 10.0µin (0.25µm) |
| Number of positions (Bay, row) | 9 |
