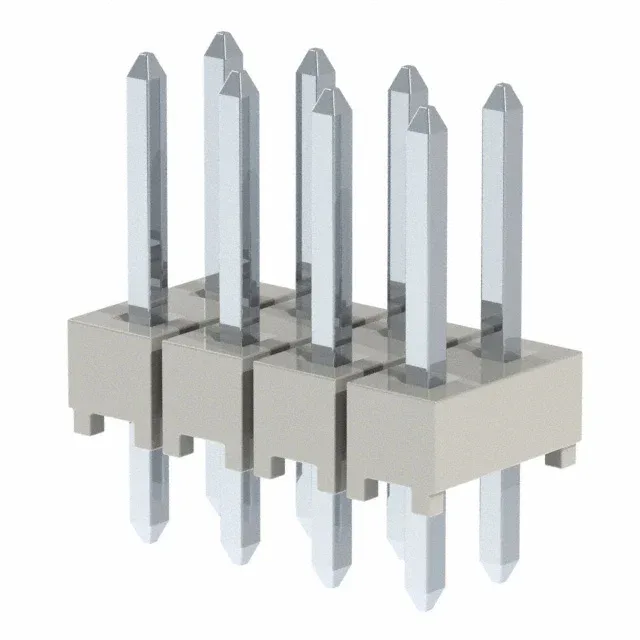

Samtec Inc. HTSW-104-07-T-D

Samtec Inc. HTSW-104-07-T-D

MPNHTSW-104-07-T-D
Active

CONN HEADER VERT 8POS 2.54MM

$0.82Ref. price · indicative, final on quote
Samtec Inc. HTSW-104-07-T-D datasheet (PDF)
RoHSROHS3 Compliant
SeriesHTSW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

HTSW-104-07-T-D key specifications
ParameterValue
SeriesHTSW
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorNatural
Insulation height0.100\" (2.54mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0

All specifications

HTSW-104-07-T-D additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Overall contact length0.430\" (10.92mm)
Contact finish - matingTin
Contact length - mating0.230\" (5.84mm)
