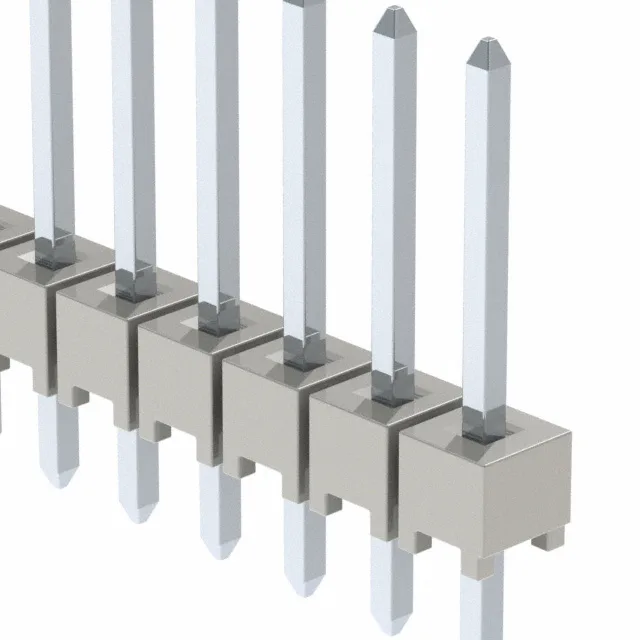

Samtec Inc. HTSW-136-14-T-S

Samtec Inc. HTSW-136-14-T-S

MPNHTSW-136-14-T-S
Active

CONN HEADER VERT 36POS 2.54MM

$3.28Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHTSW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

HTSW-136-14-T-S key specifications
ParameterValue
SeriesHTSW
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorNatural
Insulation height0.100\" (2.54mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0

All specifications

HTSW-136-14-T-S additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions36
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.530\" (13.46mm)
Contact finish - matingTin
Contact length - mating0.320\" (8.13mm)
