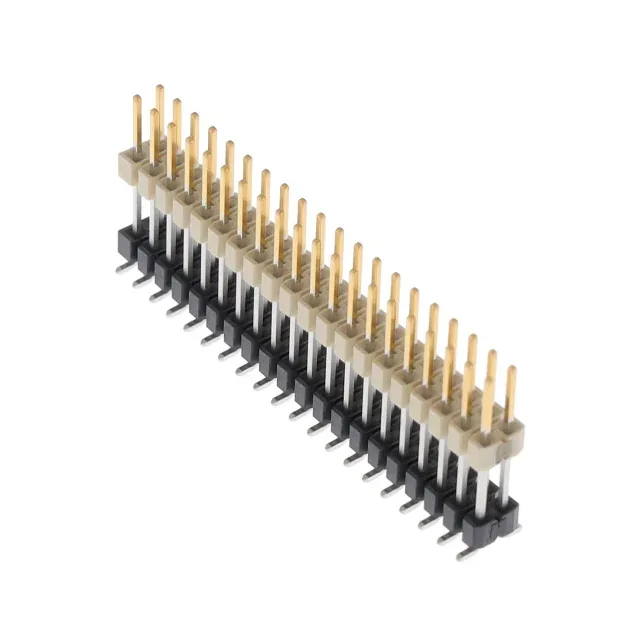

Samtec Inc. HW-20-10-F-D-500-SM
MPNHW-20-10-F-D-500-SM
Active
CONN HDR 40POS 0.1 STACK SMD
$7.83Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, HW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, HW |
| Mounting | Surface Mount |
| Color | Black |
| Length - stack height | 0.500\" (12.700mm) |
| Pitch | 0.100\" (2.54mm) |
| Package | Tube |
| Row spacing | 0.100\" (2.54mm) |
| Termination | Solder |
| Rows | 2 |
| Positions | 40 |
| Length - overall pin | 0.765\" (19.431mm) |
| Length - post (Mating) | 0.265\" (6.731mm) |
| Contact finish - post (Mating) | Gold |
| Contact finish thickness - post (Mating) | 3.00µin (0.076µm) |
