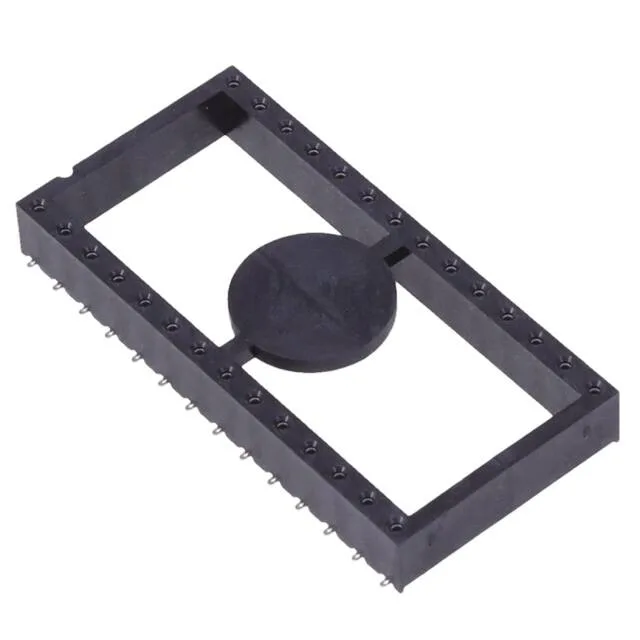

Samtec Inc. ICF-628-T-O-TR
MPNICF-628-T-O-TR
Active
CONN IC DIP SOCKET 28POS TIN
$4.92Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesiCF
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | iCF |
| Mounting | Surface Mount |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Liquid Crystal Polymer (LCP) |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Number of positions or pins | 28 (2 x 14) |
