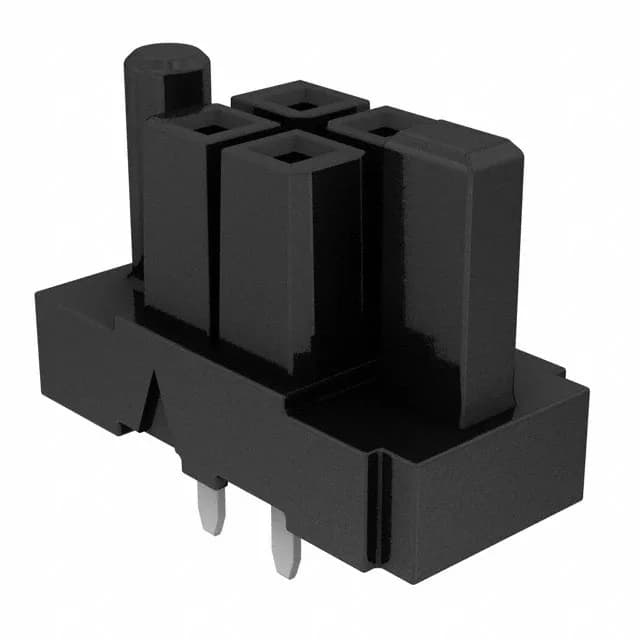

Samtec Inc. IPBS-102-01-T-D-GP — Female Socket Headers

Samtec Inc. IPBS-102-01-T-D-GP

MPNIPBS-102-01-T-D-GP
Active

CONN HDR 4POS 0.165 TIN PCB

$2.9500Ref. price · indicative, final on quote
Samtec Inc. IPBS-102-01-T-D-GP datasheet (PDF)
RoHSROHS3 Compliant
SeriesPower Mate® IPBS
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

IPBS-102-01-T-D-GP key specifications
ParameterValue
SeriesPower Mate® IPBS
TypeFemale Socket
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating400VAC, 565VDC
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.480\" (12.20mm)
Insulation materialLiquid Crystal Polymer (LCP)
StyleBoard to Board

All specifications

IPBS-102-01-T-D-GP additional specifications
ParameterValue
PackageTube
FeaturesGuide Pin
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions4
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.155\" (3.94mm)
Contact finish - matingTin
