Samtec Inc. IPBS-103-02-T-D
MPNIPBS-103-02-T-D
Active

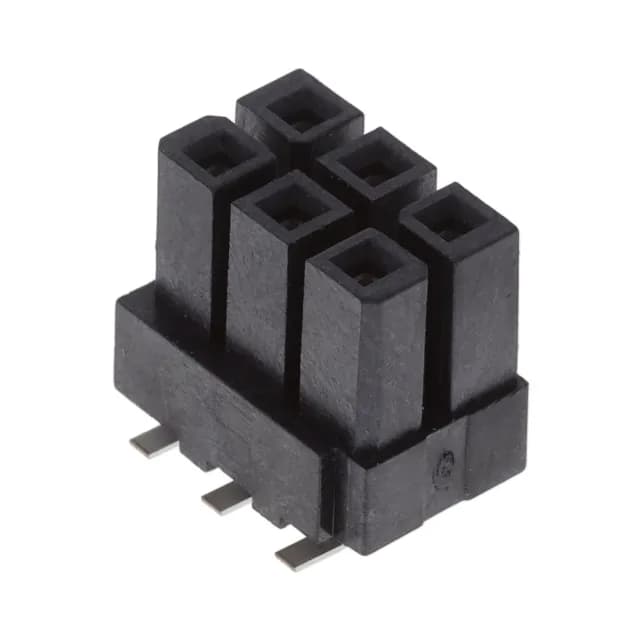

.165" POWER MATE ISOLATED POWER
$3.2800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower Mate® IPBS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Power Mate® IPBS |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 400VAC, 565VDC |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.480\" (12.20mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 6 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
