Samtec Inc. IPBT-112-H1-T-D-RA-GP — Pin Headers

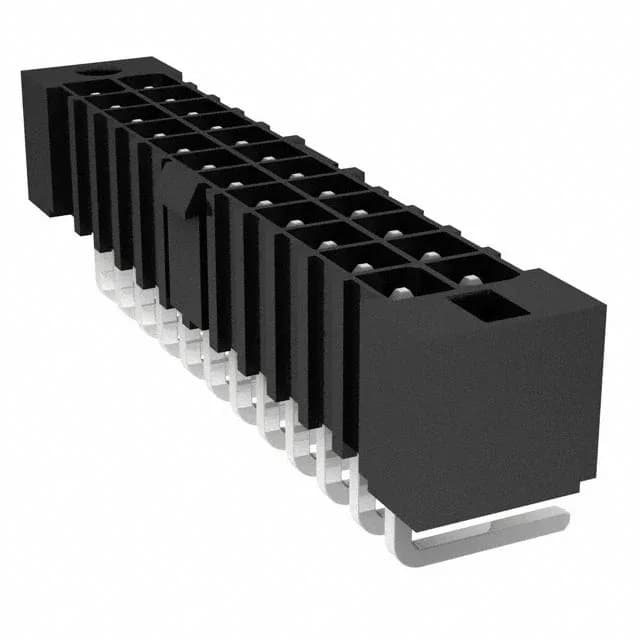

Samtec Inc. IPBT-112-H1-T-D-RA-GP

MPNIPBT-112-H1-T-D-RA-GP
Active

CONN HEADER R/A 24POS 4.2MM

$8.7800Ref. price · indicative, final on quote
Samtec Inc. IPBT-112-H1-T-D-RA-GP datasheet (PDF)
RoHSROHS3 Compliant
SeriesPower Mate® IPBT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

IPBT-112-H1-T-D-RA-GP key specifications
ParameterValue
SeriesPower Mate® IPBT
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating400VAC, 565VDC
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.424\" (10.77mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0

All specifications

IPBT-112-H1-T-D-RA-GP additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesMating Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions24
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.147\" (3.73mm)
Contact finish - matingTin
Contact length - mating0.260\" (6.60mm)
