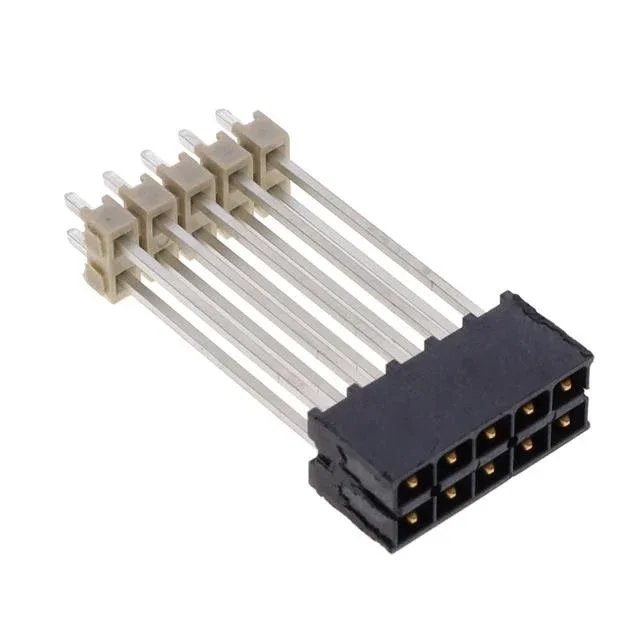

Samtec Inc. IPT1-105-08-L-D
MPNIPT1-105-08-L-D
Active
CONN HEADER VERT 10POS 2.54MM
$5.43Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini Mate® IPT1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini Mate® IPT1 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 775VAC, 1095VDC |
| Current rating | 2.3A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.996\" (25.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.094\" (2.40mm) |
| Overall contact length | 1.090\" (27.69mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.155\" (3.94mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
