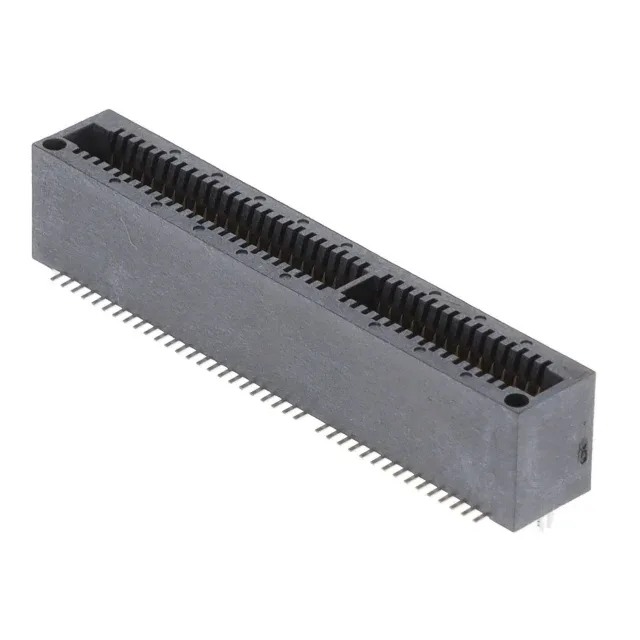

Samtec Inc. MEC1-140-02-F-D-LC
MPNMEC1-140-02-F-D-LC
Active
CONN EDGE DUAL FMALE 80POS 0.039
$9.71Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMEC1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MEC1 |
| Card type | Non Specified - Dual Edge |
| Type | Loop Bellows |
| Mounting | Surface Mount |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Beryllium Copper |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.039\" (1.00mm) |
| Gender | Female |
| Package | Tube |
| Features | Board Lock |
All specifications
| Parameter | Value |
|---|---|
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 80 |
| Contact finish thickness | 3.00µin (0.076µm) |
