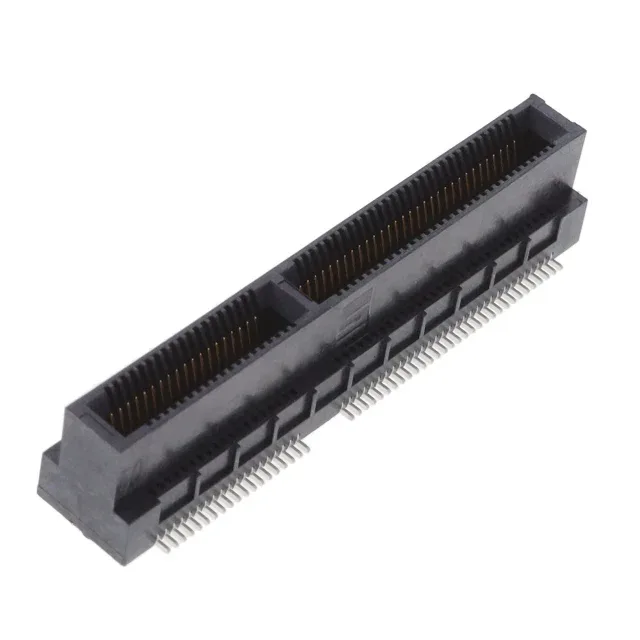

Samtec Inc. MEC6-150-02-L-DV-A-K-TR
MPNMEC6-150-02-L-DV-A-K-TR
Active
CONN EDGE DUAL FML 100POS 0.025
$10.59Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMEC6 - DV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MEC6 - DV |
| Card type | Non Specified - Dual Edge |
| Mounting | Surface Mount |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.025\" (0.64mm) |
| Gender | Female |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Pick and Place |
| Read out | Dual |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 100 |
| Contact finish thickness | 10.0µin (0.25µm) |
| Number of positions (Bay, row) | 50 |
