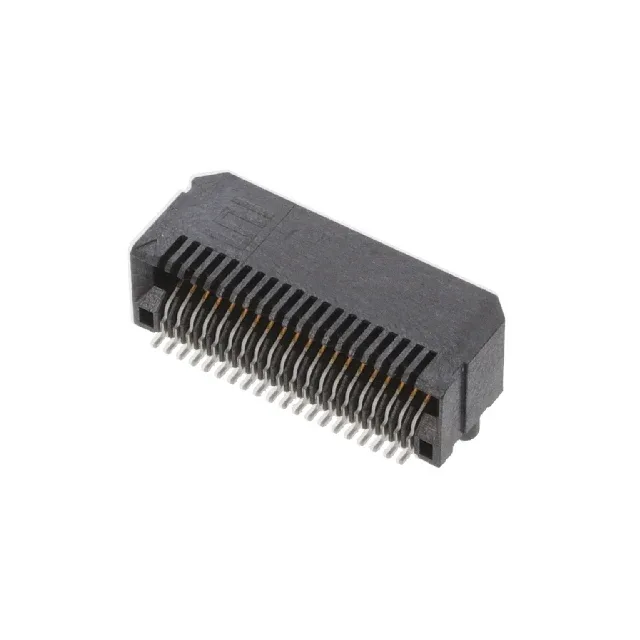

Samtec Inc. MEC8-120-02-L-D-RA1
MPNMEC8-120-02-L-D-RA1
Active
CONN EDGE DUAL FMALE 40POS 0.031
$10.57Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMEC8 - RA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MEC8 - RA |
| Card type | Non Specified - Dual Edge |
| Type | Hairpin Bellows |
| Mounting | Surface Mount, Right Angle |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.031\" (0.80mm) |
| Gender | Female |
| Package | Tray |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 40 |
| Contact finish thickness | 10.0µin (0.25µm) |
