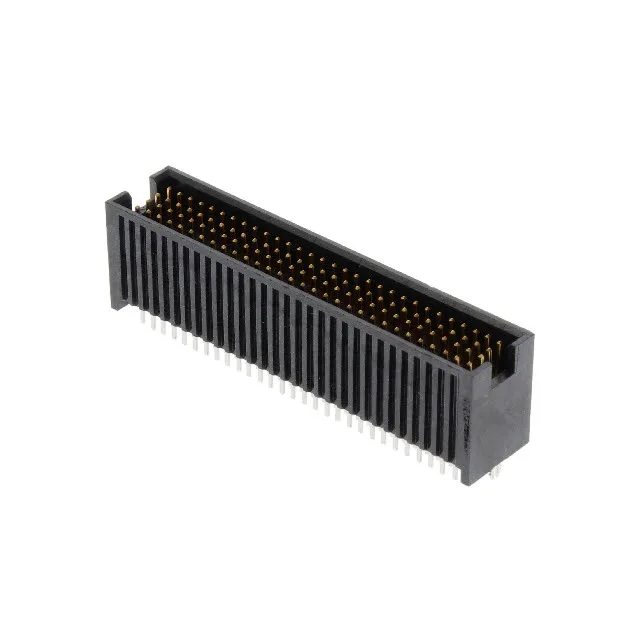

Samtec Inc. MOLC-130-31-L-Q-LC
MPNMOLC-130-31-L-Q-LC
Active
CONN HEADER VERT 120POS 1.27MM
$25.38Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFOURRAY™ MOLC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FOURRAY™ MOLC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 2.6A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.435\" (11.05mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 11.43mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 4 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 120 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.075\" (1.91mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.144\" (3.66mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
