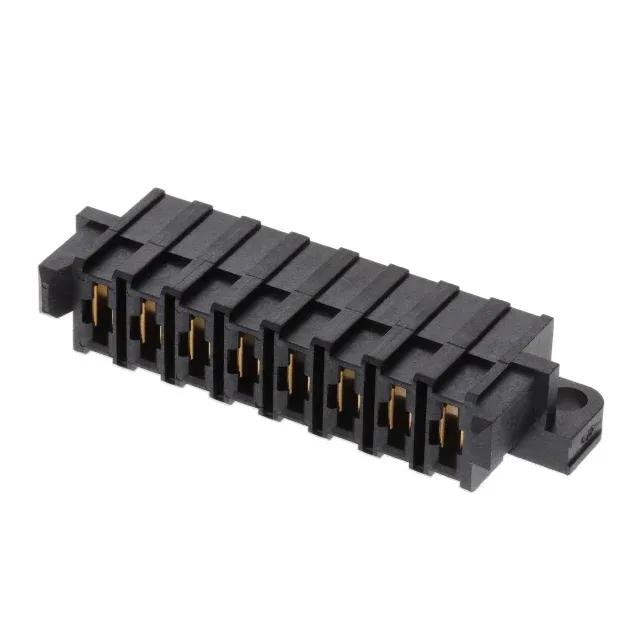

Samtec Inc. MPS-08-01-01-L-RA-SD
MPNMPS-08-01-01-L-RA-SD
Active
VERTICAL MINI-POWER SOCKET
$8.21Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPowerStrip™ 30 MPS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PowerStrip™ 30 MPS |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Blade Sockets |
| Fastening type | Screw Lock |
| Voltage rating | 812 V |
| Current rating | 30 A |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.197\" (5.00mm) |
| Package | Tray |
| Features | Flange |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 8 |
| Contact finish thickness | 10.0µin (0.25µm) |
