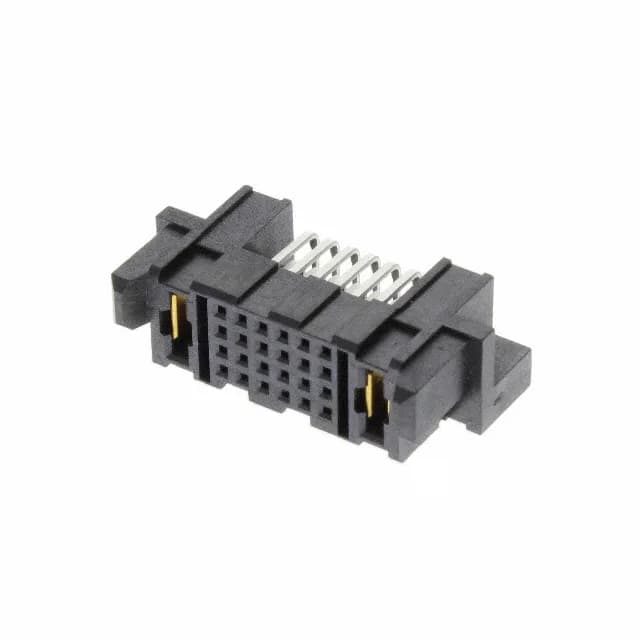

Samtec Inc. MPSC-01-24-01-01-01-L-RA-LC
MPNMPSC-01-24-01-01-01-L-RA-LC
Active
CONN RCPT 26POS GOLD PCB R/A
$8.8300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPowerStrip™ 30 MPSC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PowerStrip™ 30 MPSC |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy, Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock, Mounting Flange |
| Termination | Solder |
| Contact shape | Square |
| Rows | 4 |
| Positions | 26 (24 + 2 Power) |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.107\" (2.71mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
