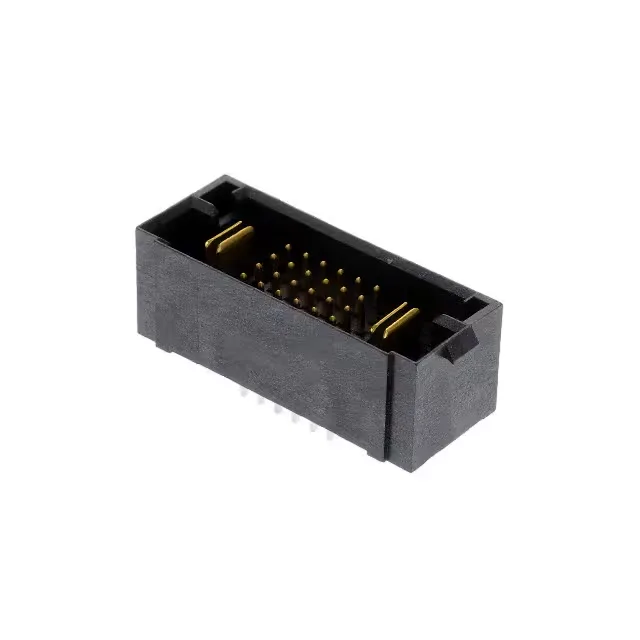

Samtec Inc. MPTC-01-24-01-6.30-01-L-V
MPNMPTC-01-24-01-6.30-01-L-V
Active
CONN HEADER VERT 26POS
$7.71Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPowerStrip™ 30 MPTC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PowerStrip™ 30 MPTC |
| Type | Male Blade; Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy, Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.448\" (11.38mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 14mm |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular, Square |
| Rows | 4 |
| Positions | 26 (24 + 2 Power) |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.107\" (2.71mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
