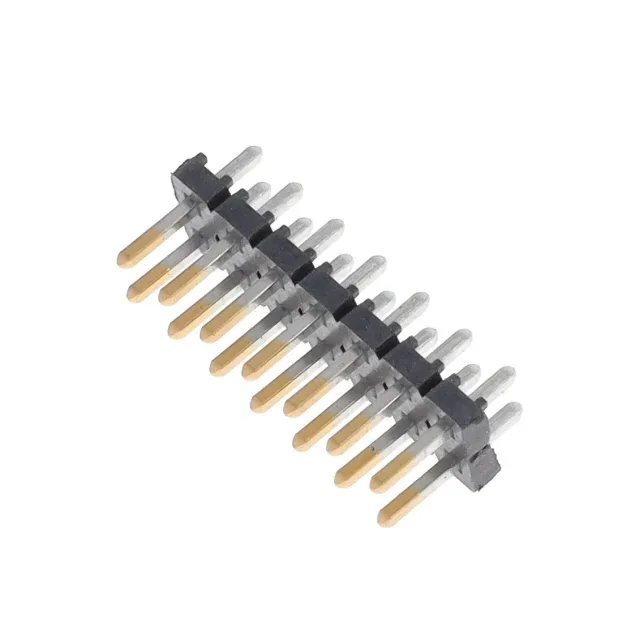

Samtec Inc. MTLW-107-06-F-D-155
MPNMTLW-107-06-F-D-155
Active
CONN HEADER VERT 14POS 2.54MM
$2.65Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, MTLW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, MTLW |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 5.2A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.060\" (1.52mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.085\" (2.16mm) |
| Overall contact length | 0.300\" (7.62mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.155\" (3.94mm) |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
