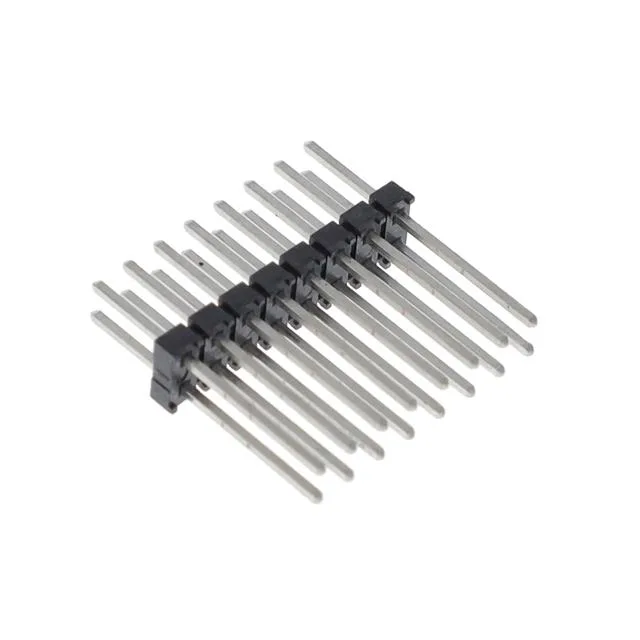

Samtec Inc. MTMM-108-12-T-D-200

Samtec Inc. MTMM-108-12-T-D-200

MPNMTMM-108-12-T-D-200
Active

CONN HEADER VERT 16POS 2MM

$2.65Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTMM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

MTMM-108-12-T-D-200 key specifications
ParameterValue
SeriesMTMM
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Cuttable
Fastening typePush-Pull
Current rating3A
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.059\" (1.50mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0

All specifications

MTMM-108-12-T-D-200 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions16
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.355\" (9.02mm)
Overall contact length0.614\" (15.60mm)
Contact finish - matingTin
Contact length - mating0.200\" (5.08mm)
