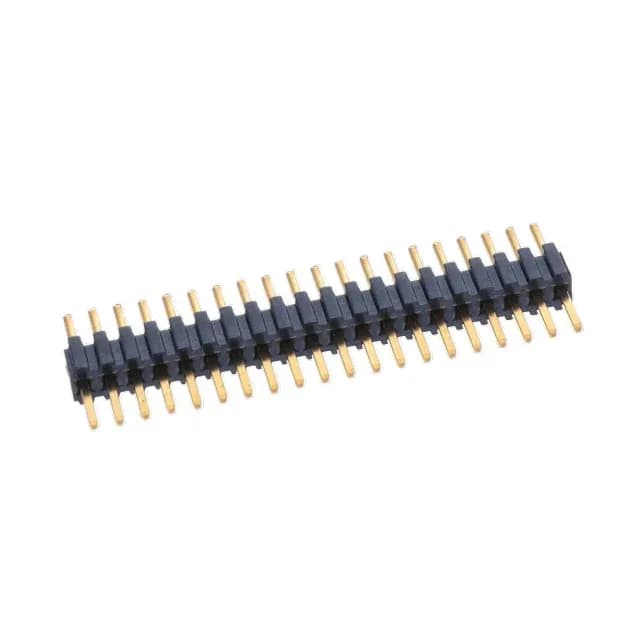

Samtec Inc. MTMS-105-01-G-S-230
MPNMTMS-105-01-G-S-230
Active
.050" X .100" VARIABLE POST HEIG
$1.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, MTMS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, MTMS |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 5 |
| Contact finish - post | Gold |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
