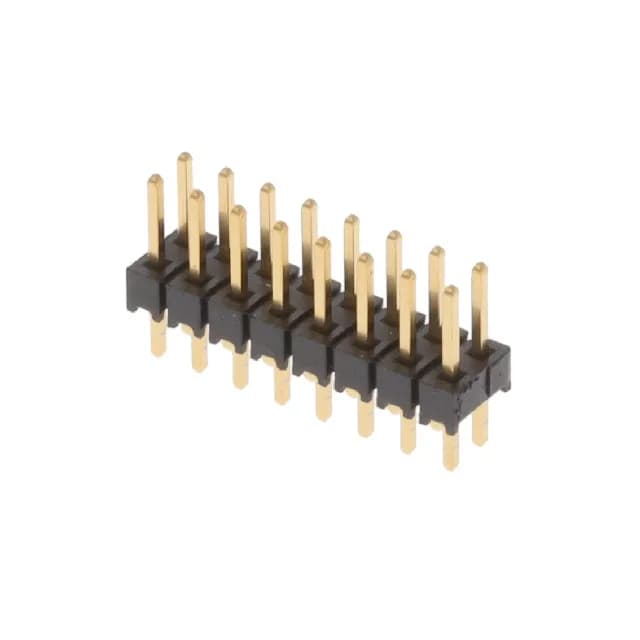

Samtec Inc. MTSW-108-07-G-D-205
MPNMTSW-108-07-G-D-205
Active
CONN HEADER VERT 16POS 2.54MM
$2.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, MTSW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, MTSW |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.430\" (10.92mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.205\" (5.21mm) |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
