Samtec Inc. MW-40-03-G-D-100-200
MPNMW-40-03-G-D-100-200
Active

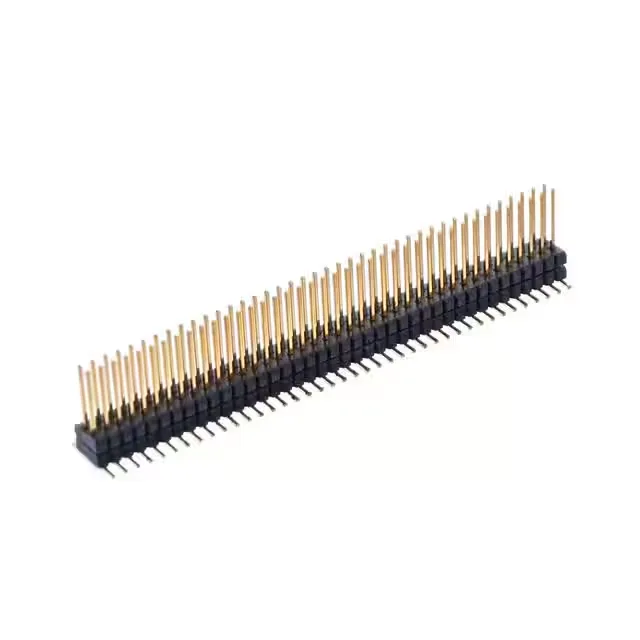

CONN HDR 80POS 0.039 STACK SMD
$19.04Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, MW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, MW |
| Mounting | Surface Mount |
| Color | Black |
| Length - stack height | 0.100\" (2.540mm) |
| Pitch | 0.039\" (1.00mm) |
| Package | Tube |
| Row spacing | 0.039\" (1.00mm) |
| Termination | Solder |
| Rows | 2 |
| Positions | 80 |
| Length - overall pin | 0.300\" (7.620mm) |
| Length - post (Mating) | 0.200\" (5.080mm) |
| Contact finish - post (Mating) | Gold |
| Contact finish thickness - post (Mating) | 10.0µin (0.25µm) |
