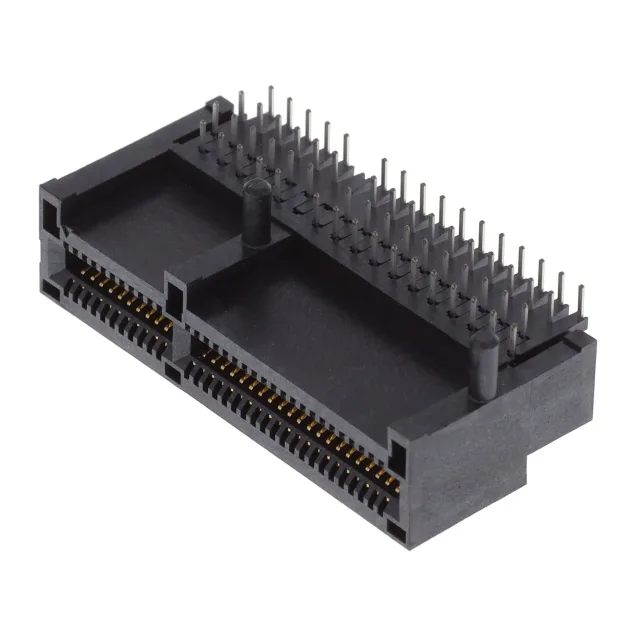

Samtec Inc. PCIE-064-02-S-D-RA
MPNPCIE-064-02-S-D-RA
Active
CONN PCI EXP FMALE 64POS 0.039
$10.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPCI Express® (PCIe)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PCI Express® (PCIe) |
| Card type | PCI Express™ |
| Mounting | Through Hole, Right Angle |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.039\" (1.00mm) |
| Gender | Female |
| Package | Tube |
| Features | Board Guide |
| Read out | Dual |
| Termination | Solder, Staggered |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 64 |
| Contact finish thickness | 30.0µin (0.76µm) |
