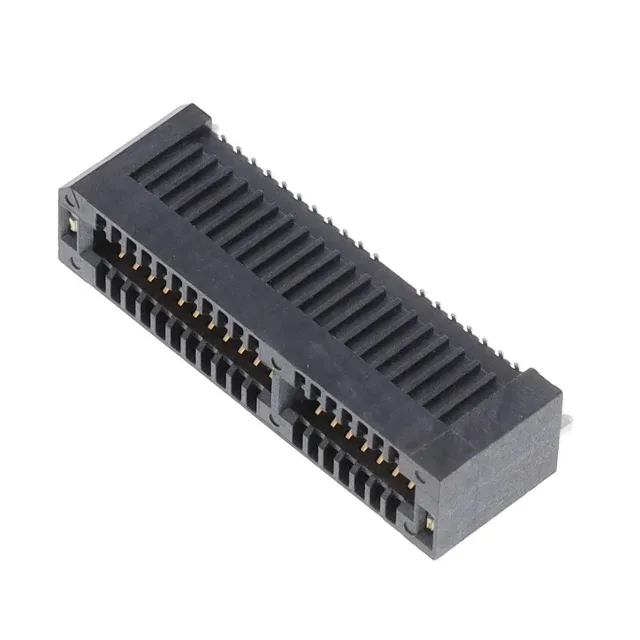

Samtec Inc. PCIE-G4-01-01-F-DV-WT-K-TR
MPNPCIE-G4-01-01-F-DV-WT-K-TR
Active
CONN PCI EXP FMALE 36POS 0.039
$4.57Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPCI Express® (PCIe)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PCI Express® (PCIe) |
| Card type | PCI Express™ |
| Type | Cantilever |
| Mounting | Surface Mount |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.039\" (1.00mm) |
| Gender | Female |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
All specifications
| Parameter | Value |
|---|---|
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.063\" (1.60mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 36 |
| Contact finish thickness | 3.00µin (0.076µm) |
