Samtec Inc. RSP-122811-02 — RF / Coaxial Connectors

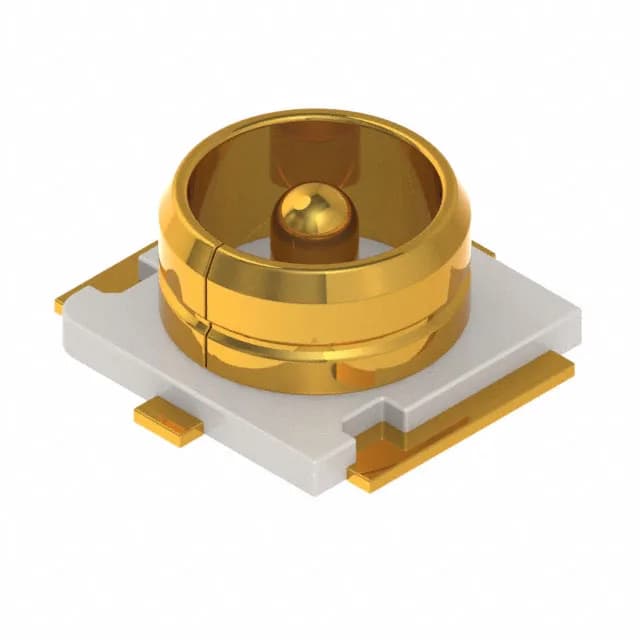

RSP-122811-02 IPEX MHFIII Receptacle, 50 Ohm, 6 GHz

MPNRSP-122811-02
Active

RSP-122811-02, IPEX MHFIII receptacle, male pin, 50 Ohm, 6 GHz, 1 port, Snap-On, SMT, gold center contact.

$3.7900Ref. price · indicative, final on quote
Samtec Inc. RSP-122811-02 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

RSP-122811-02 specifications
ParameterValue
MountingSurface Mount
Connector typeReceptacle, Male Pin
Fastening typeSnap-On
Frequency - max6 GHz
Impedance50 Ohms
PackageStrip
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

50 Ohm IPEX MHFIII receptacle for sub-6 GHz RF

The RSP-122811-02: It uses a Snap-On fastening mechanism for quick, secure mating with the corresponding MHFIII plug. The single-port SMT package with solder shield termination suits compact wireless modules where board space is tight.

6 GHz bandwidth and 50 Ohm controlled impedance

The controlled impedance is maintained through the SMT launch and the Snap-On interface geometry — no additional matching network needed when the PCB trace is designed to 50 Ohm.

Frequently asked questions

Where can I buy RSP-122811-02 and how do I get a price?

RSP-122811-02 is available to order against an RFQ.

What connector mates with RSP-122811-02?

The RSP-122811-02 mates with the matching IPEX MHFIII plug (male pin receptacle accepts the female socket plug). The Snap-On fastening ensures positive retention without a secondary latch.
