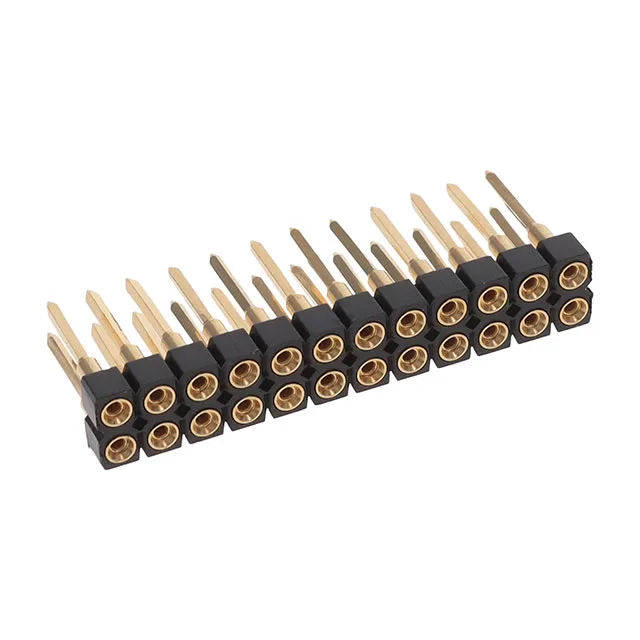

Samtec Inc. SD-112-G-21C
MPNSD-112-G-21C
Active
.100" DOUBLE ROW SCREW MACHINE S
$15.44Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SD |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.260\" (6.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
