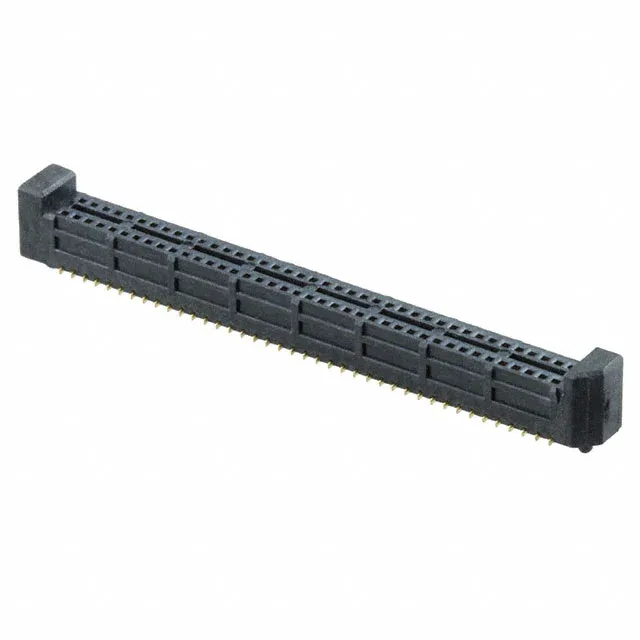

Samtec Inc. SEM-140-02-03.0-H-D-A
MPNSEM-140-02-03.0-H-D-A
Active
CONN RCPT 80POS 0.031 GOLD SMD
$17.45Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTiger Eye™ SEM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Tiger Eye™ SEM |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2.6A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 6mm, 7mm, 10mm |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 80 |
| Row spacing - mating | 0.125\" (3.18mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
