SFML-110-02-S-D-LC

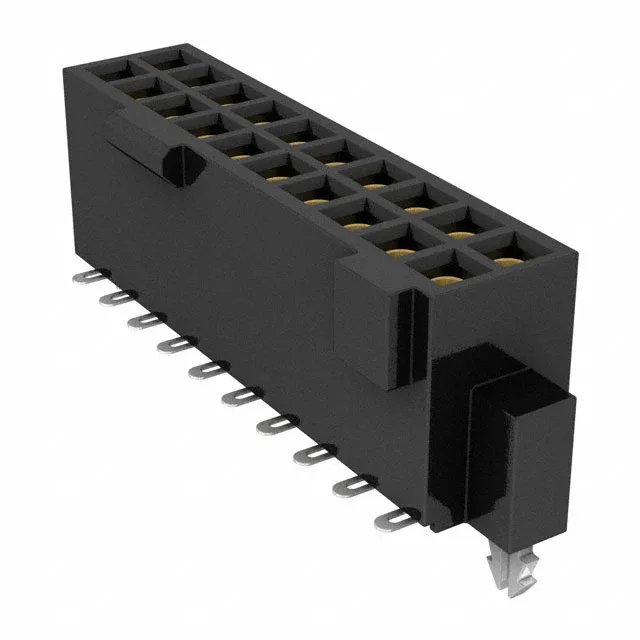

Samtec Inc. SFML-110-02-S-D-LC
MPNSFML-110-02-S-D-LC
Active
CONN RCPT 20POS 0.05 GOLD SMD
$10.17Ref. price · indicative, final on quote
Price breaks USDindicative — final on quote
1+ $10.1700010+ $9.15700100+ $8.18400500+ $6.856881,000+ $6.06061
RoHSROHS3 Compliant
StockContact for availability
MOQ1 pcs
SeriesTiger Eye™ SFML
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | Tiger Eye™ SFML |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | 3.2A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Insulation color | Black |
| Insulation height | 0.185\" (4.70mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Termination | Solder |
| Contact shape | Square |
| Number of rows | 2 |
| Pitch - mating | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Number of positions loaded | All |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
MPN
SFML-110-02-S-D-LC
