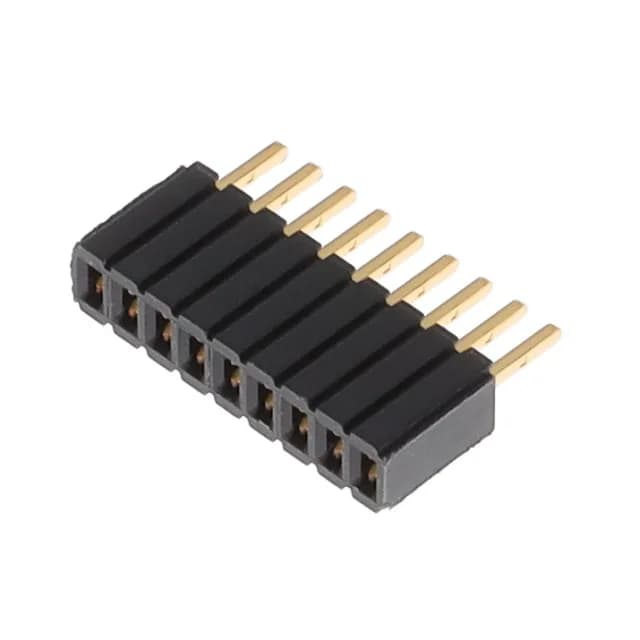

Samtec Inc. SLM-109-01-G-S
MPNSLM-109-01-G-S
Active
.050 MICRO STRIPS
$2.6200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSLM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SLM |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.180\" (4.57mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 9 |
| Contact finish - post | Gold |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
