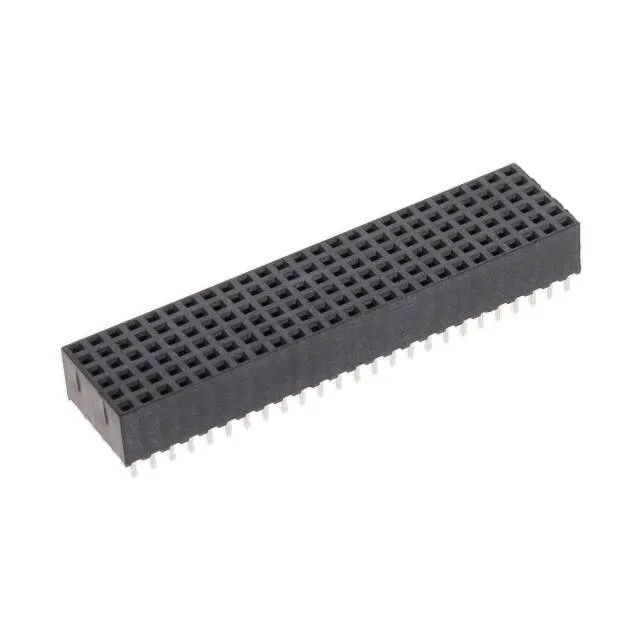

SQW-125-01-F-6
Samtec Inc. SQW-125-01-F-6
MPNSQW-125-01-F-6
Active
CONN RCPT 150POS 0.079 GOLD PCB
$19.9Ref. price · indicative, final on quote
Price breaks USDindicative — final on quote
1+ $19.9000010+ $17.42600100+ $15.59690500+ $14.30614
RoHSROHS3 Compliant
StockContact for availability
MOQ1 pcs
SeriesSQW
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | SQW |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 3.8A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Number of rows | 6 |
| Pitch - mating | 0.079\" (2.00mm) |
| Positions | 150 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.090\" (2.29mm) |
| Contact finish - mating | Gold |
| Number of positions loaded | All |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
MPN
SQW-125-01-F-6
