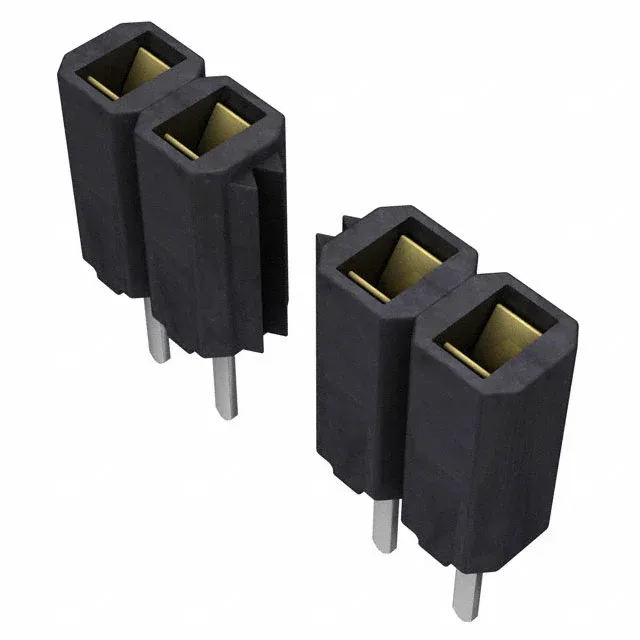

Samtec Inc. SSA-108-S-G
MPNSSA-108-S-G
Active
CONN RCPT 8POS 0.1 GOLD PCB
$2.39Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSSA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SSA |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 1000V |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.230\" (5.85mm) |
| Insulation material | Polyethylene Terephthalate (PET), Polyester |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Termination | Solder |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact length - post | 0.151\" (3.84mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
