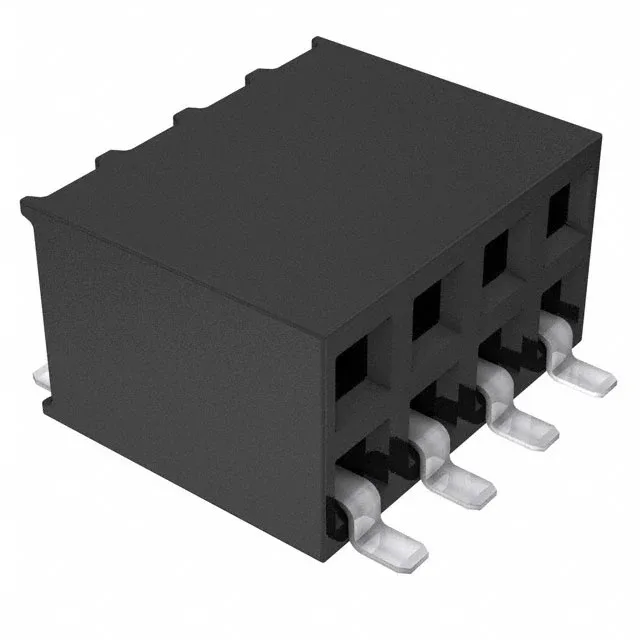

Samtec Inc. SSM-104-L-DH-TR
MPNSSM-104-L-DH-TR
Active
CONN RCPT 8POS 0.1 GOLD SMD R/A
$3.76Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTiger Claw™ SSM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Tiger Claw™ SSM |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 405VAC, 572VDC |
| Current rating | 5.2A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.225\" (5.72mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
