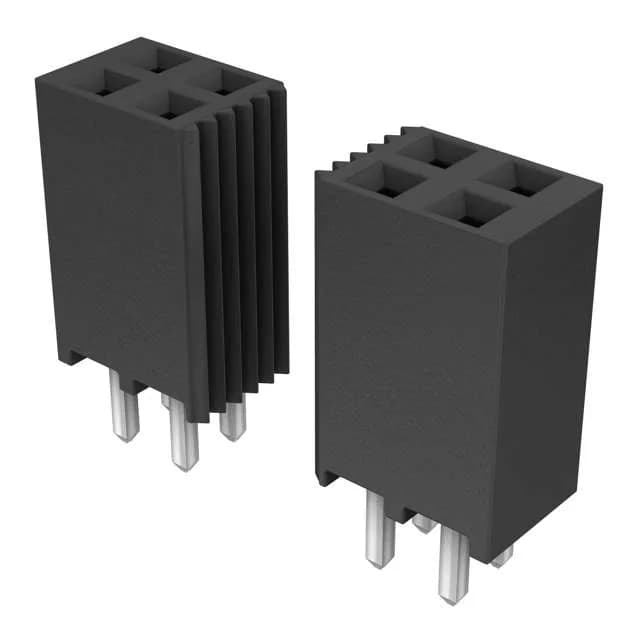

Samtec Inc. SSQ-106-01-F-D
MPNSSQ-106-01-F-D
Active
CONN RCPT 12POS 0.1 GOLD PCB
$2.3500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSSQ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SSQ |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 465VAC, 655VDC |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.104\" (2.64mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
