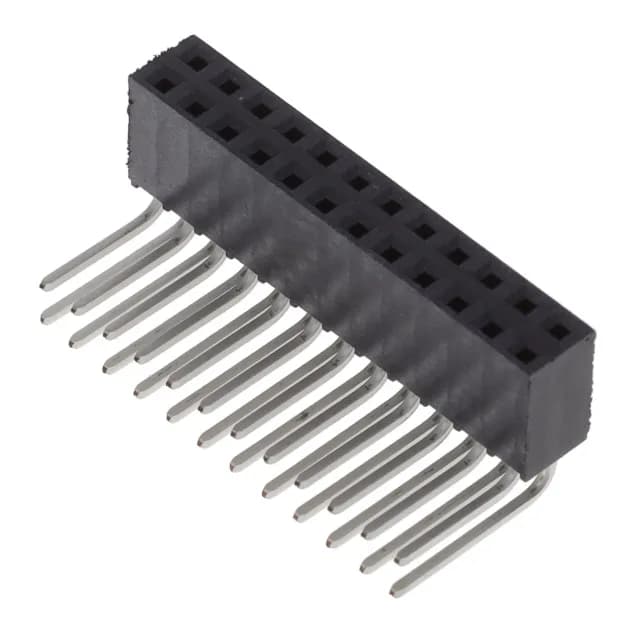

Samtec Inc. SSQ-112-23-S-D-RA
MPNSSQ-112-23-S-D-RA
Active
CONN RCPT 24POS 0.1 GOLD PCB R/A
$5.3500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSSQ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SSQ |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 465VAC, 655VDC |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.195\" (4.95mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.300\" (7.62mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
