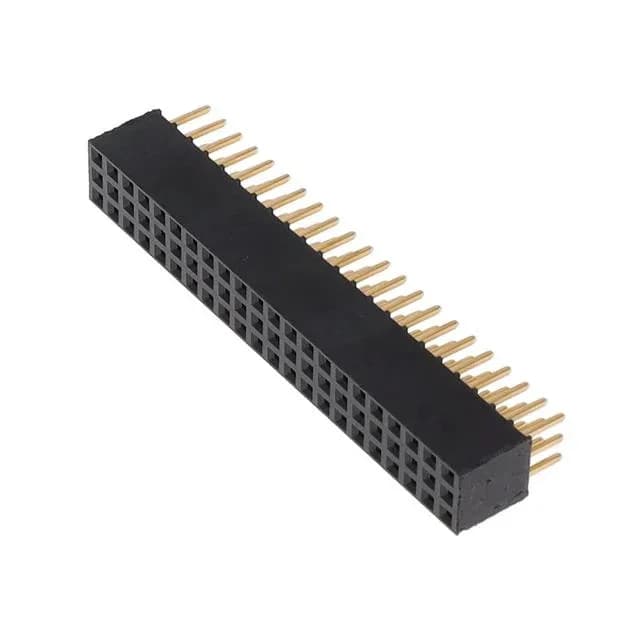

Samtec Inc. SSQ-122-22-G-T
MPNSSQ-122-22-G-T
Active
CONN RCPT 66POS 0.1 GOLD PCB
$14.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSSQ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SSQ |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 465VAC, 655VDC |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Termination | Solder |
| Contact shape | Square |
| Rows | 3 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 66 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.194\" (4.93mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
