Samtec Inc. STMM-117-02-G-D-RA
MPNSTMM-117-02-G-D-RA
Active

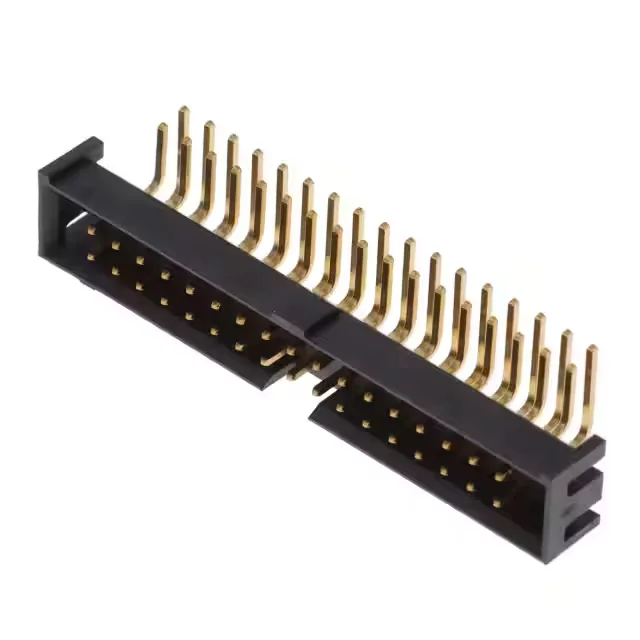

CONN HEADER R/A 34POS 2MM
$11.55Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFlex Stack, STMM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Flex Stack, STMM |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.236\" (6.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 34 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.090\" (2.29mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.120\" (3.05mm) |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
