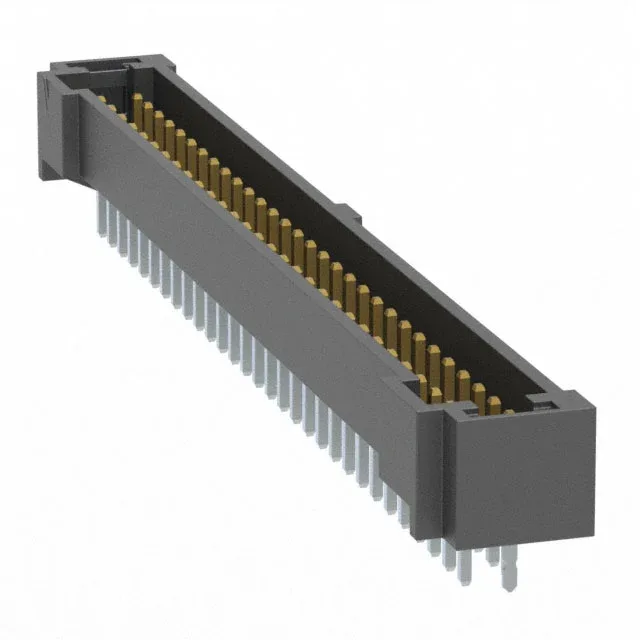

Samtec Inc. T2M-130-01-S-D-RA
MPNT2M-130-01-S-D-RA
Active
CONN HEADER R/A 60POS 2MM
$19.69Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTiger Eye™ T2M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Tiger Eye™ T2M |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3.8A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.293\" (7.44mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 60 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.090\" (2.29mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
