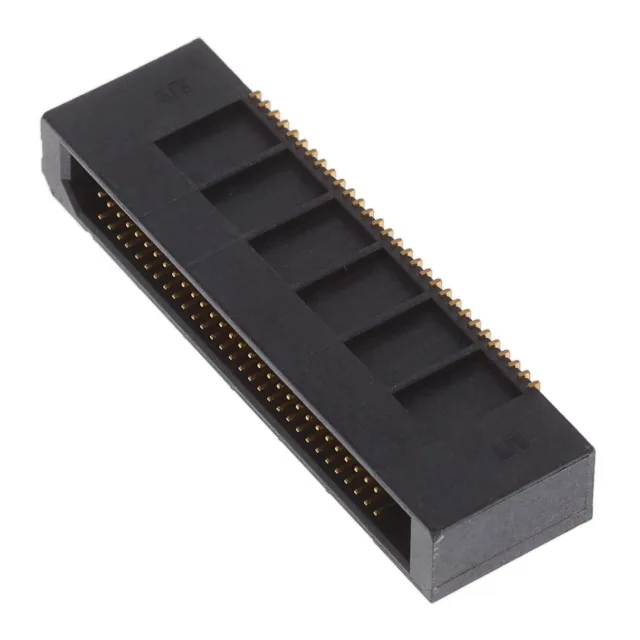

Samtec Inc. TEM-130-02-07.0-G-D-A
MPNTEM-130-02-07.0-G-D-A
Active
.8MM TIGER EYE MICRO TERMINAL
$11.91Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTiger Eye™ TEM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Tiger Eye™ TEM |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 2.9A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.378\" (9.60mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 10mm |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 60 |
| Row spacing - mating | 0.063\" (1.60mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
