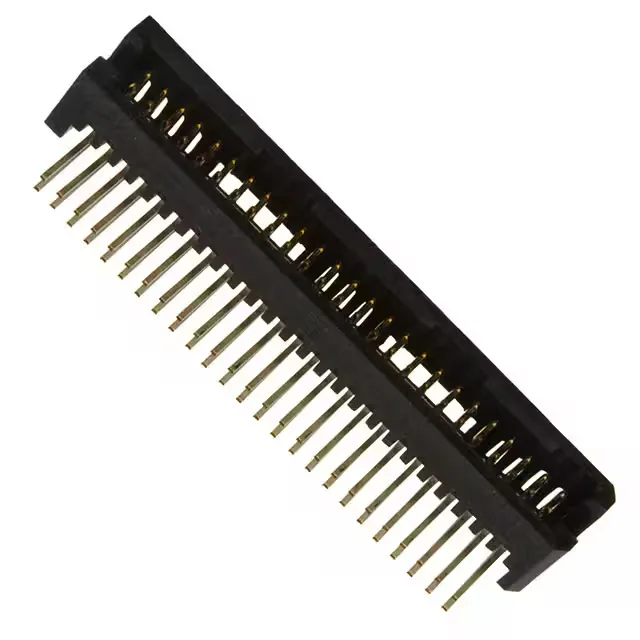

Samtec Inc. TFML-125-01-S-D-RA
MPNTFML-125-01-S-D-RA
Active
CONN HEADER R/A 50POS 1.27MM
$16.35Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTiger Eye™ TFML
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Tiger Eye™ TFML |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.225\" (5.72mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 50 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.075\" (1.91mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.134\" (3.39mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
