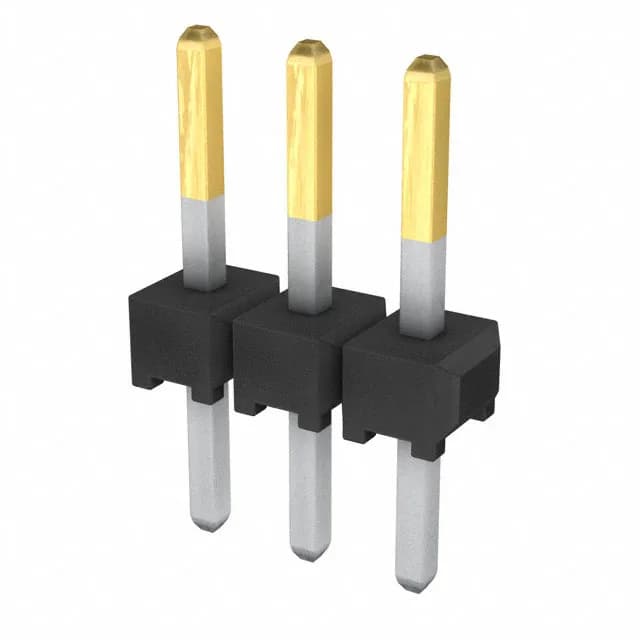

Samtec Inc. TMM-103-03-L-S
MPNTMM-103-03-L-S
Active
CONN HEADER VERT 3POS 2MM
$0.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTMM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TMM |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3.2A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.106\" (2.69mm) |
| Overall contact length | 0.323\" (8.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
