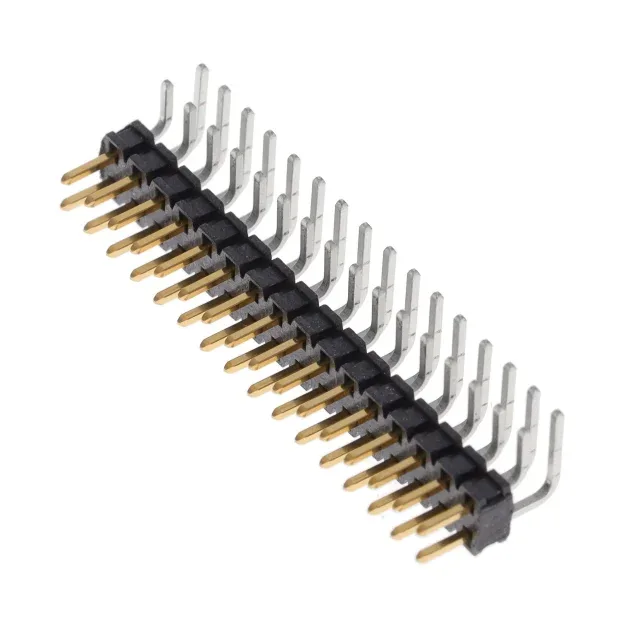

Samtec Inc. TMMH-116-01-T-DV-M-TR
MPNTMMH-116-01-T-DV-M-TR
Active
2.00 MM TERMINAL STRIP
$4.47Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTMMH
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TMMH |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.079\" (2.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 32 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.126\" (3.20mm) |
