Samtec Inc. TMMH-125-01-F-D-RA-ES — Pin Headers

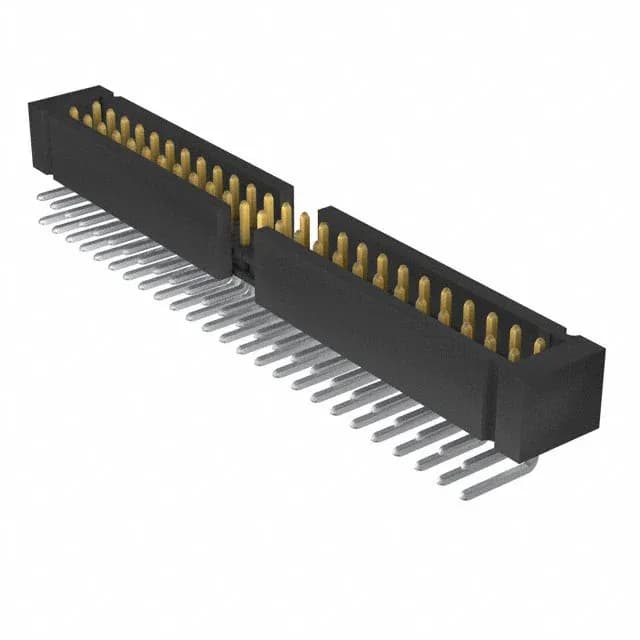

Samtec Inc. TMMH-125-01-F-D-RA-ES

MPNTMMH-125-01-F-D-RA-ES
Active

CONN HEADER R/A 50POS 2MM

$8.8500Ref. price · indicative, final on quote
Samtec Inc. TMMH-125-01-F-D-RA-ES datasheet (PDF)
RoHSROHS3 Compliant
SeriesTMMH
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

TMMH-125-01-F-D-RA-ES key specifications
ParameterValue
SeriesTMMH
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Cuttable
Fastening typePush-Pull
Operating temperature-55°C ~ 125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.250\" (6.35mm)
Insulation materialLiquid Crystal Polymer (LCP)
StyleBoard to Board or Cable
PackageTube

All specifications

TMMH-125-01-F-D-RA-ES additional specifications
ParameterValue
FeaturesEnd Shrouds
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions50
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.139\" (3.53mm)
Contact finish - matingGold
Contact length - mating0.126\" (3.20mm)
Contact finish thickness - mating3.00µin (0.076µm)
