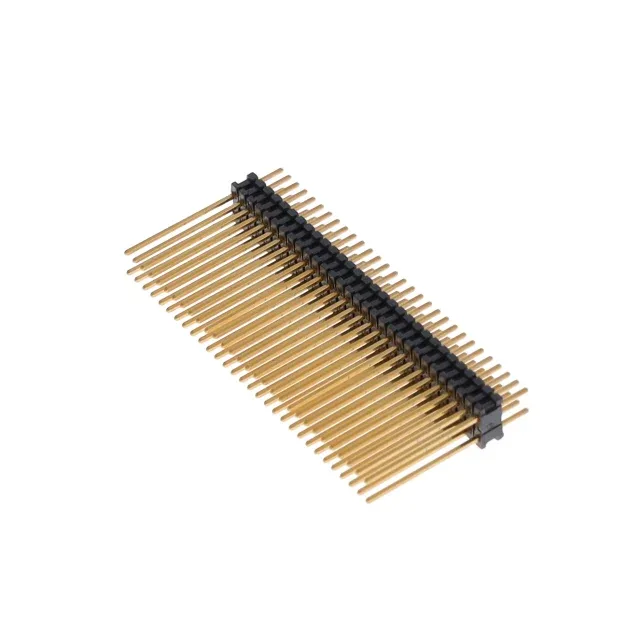

TMS-130-58-G-D
Samtec Inc. TMS-130-58-G-D
MPNTMS-130-58-G-D
Active
.050" (1.27MM) MICRO HEADER
$11.67Ref. price · indicative, final on quote
Price breaks USDindicative — final on quote
1+ $11.6700010+ $10.34000100+ $9.01420500+ $7.688621,000+ $7.05232
RoHSROHS3 Compliant
StockContact for availability
MOQ1 pcs
SeriesTMS
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | TMS |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 5A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Number of rows | 2 |
| Pitch - mating | 0.050\" (1.27mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.705\" (17.91mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.485\" (12.32mm) |
| Number of positions loaded | All |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
