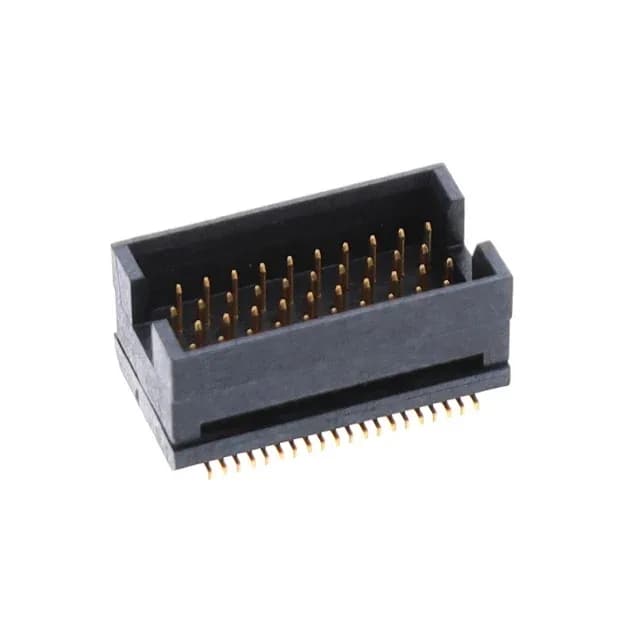

Samtec Inc. TOLC-110-12-F-Q
MPNTOLC-110-12-F-Q
Active
QUAD ROW SMT TERMINAL
$11.5500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFOURRAY™ TOLC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FOURRAY™ TOLC |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Elevated |
| Fastening type | Push-Pull |
| Current rating | 2.4A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.285\" (7.25mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 8mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 4 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 40 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact length - mating | 0.100\" (2.54mm) |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
